Amtech EBM Environmental Booths

Safe and Effective Containment of Dust and Fumes

Previous slide
Next slide

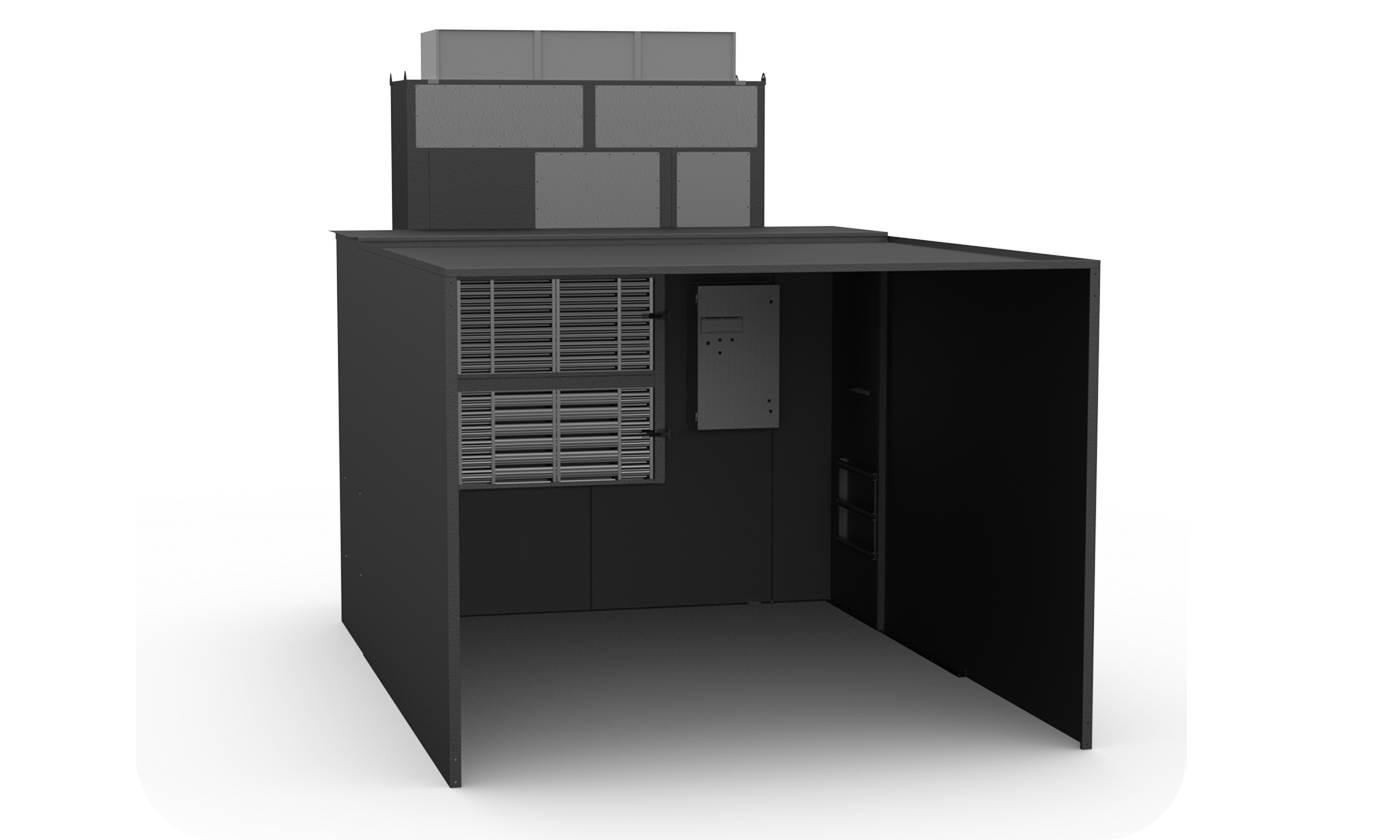

The Amtech EBM Environmental Booth by Clean Air Industries epitomizes the pinnacle of air purification technology, offering a comprehensive solution for the effective capture of airborne contaminants.

This state-of-the-art system is specifically engineered to filter a wide array of particulates, including fiberglass, composites, metal finishing by-products, and various fumes, particularly from sizable workpieces.

Boasting a versatile range of cartridge options – 4, 6, or 8 – with capacities spanning from 3000 CFM to 6000 CFM, the Amtech Environmental Booth Modules (EBMs) form the core of the booth’s filtration mechanism. These modules efficiently draw in smoke, dust, and fumes through a strategically designed louvered inlet, effectively redirecting these contaminants away from the operator’s breathing zone,Amtech EBM Environmental Booth by Clean Air Industries thereby ensuring a safer work environment.

What sets the Amtech EBM Environmental Booth apart is its modular design, which allows for seamless customization to meet the unique requirements of your workspace. Additionally, its innovative, built-in reverse jet pulse cleaning system significantly prolongs filter life while simultaneously minimizing the need for maintenance.

This makes the Amtech EBM Environmental Booth an ideal choice for a variety of applications, including the containment of welding smoke and fumes, grinding dust, composites dust, as well as various vapors and odors.

Applications

Abrasive Blasting
Grinding
Manual Welding
Plasma Cutting
• Large Part Fabrication

Features

• High rate of airflow ranging from 3000 – 6000 CFM
• Modules can be installed individually or in conjunction with a booth
• Modular, compact design permits proper sizing for each application
• Reverse jet pulse design optimizes filter cleaning
• No duct work required, reducing installation cost

Benefits

• Eliminates dust and fume from your environment
• Removes harmful particles including bacteria
• Main filter life exceeds the industry standard
• Fire Suppression available

Why Amtech EBM Environmental Booths

• Base Booth Enclosure Options 7.5′, 10′,11.6′, 15’W x 9.1’H & 8.3′ to 12.5’D
• Proudly made in the USA with quick service and support
• 4, 6 or 8-cartridge options
• Duct work design and fabrication for external venting (optional)

Technical Specifications

Model Motor CFM Volts/Phase/Hz Amps Weight Width Height Depth Noise Dust Tray Filter Type
Amtech EBM-4 5 HP 3000 230, 460V/3/60Hz 12.4, 6.2 1200 lbs 37.38″ 88.25″ 42.25″ 78 dBA @ 5′ 13.5 gal Fire Retardant 80/20 Cellulose/Polyester 36″x12.75″
99.5% @ 0.5 microns (4x)
Amtech EBM-6 7.5 HP 4500 230, 460V/3/60Hz 17, 8.5 1600 lbs 54.13″ 88.25″ 42.25″ 80 dBA @ 5′ 20.5 gal Fire Retardant 80/20 Cellulose/Polyester 36″x12.75″
99.5% @ 0.5 microns (6x)
Amtech EBM-8 10 HP 6000 230, 460V/3/60Hz 22.8, 11.4 2000 lbs 70.88″ 88.25″ 42.25″ 82 dBA @ 5′ 27 gal Fire Retardant 80/20 Cellulose/Polyester 36″x12.75″
99.5% @ 0.5 microns (8x)

Custom Designs & Modular Configurations

Clean Air Industries can modify units to fit your specific application.  Everything from ceiling clearance, to floor space can effect what you need.  As we cut and weld everything in-house, we are able to accommodate your needs as required.
