Brahm™ Plug & Play Central Dust Collectors

A Smart Solution for Moderate Fume and Dust Collection

Brahm BC4
Brahm BC8
Brahm BC12
Brahm BC18
Previous slide
Next slide

Brahm Plug & Play Central Dust Collectors, available in 4 to 18 cartridge models, offer efficient and effective dust and fume management for a variety of industrial environments.

These systems are designed to handle demanding conditions, providing robust dust collection solutions that scale with your business needs. The smaller 4-cartridge model is ideal for compact spaces, offering significant dust and fume extraction while occupying minimal floor space.

For larger industrial settings, the systems expand up to 18 cartridges, ensuring highcapacity air filtration and dust control. Installation is straightforward with the Plug & Play design, minimizing downtime and simplifying setup.

Maintenance is equally effortless, thanks to easily replaceable cartridges and user-friendly built-in controls, featuring variable frequency drive (VFD) and an HMI Interface with remote access. By choosing Brahm Plug & Play Central Dust Collection systems, you are selecting a practical, efficient, and sustainable solution for maintaining a clean and safe industrial environment.

Health and Safety

Health and safety issues are being taken very seriously by a growing number of companies as OSHA, International, and industry standards increase.

Many large US manufacturers are planning ahead and adopting European exposure limits as a global standard for their entire company and are exceeding OSHA Standards.

To meet these standards companies must implement a highly efficient dust and fume filtration system to filter out the harmful particulate.  The exposure limits these companies are targeting range from .02 – 1 mg/m3 depending on company policy, well below the 5 mg/m3 standard set by OSHA.

Options

• Filter Upgrade: Nanofiber (MERV 15), PTFE (MERV 16) available
• Silencer: Additional noise reduction, available in 24”, 36”, and 48” heights
• Fire Suppression System: Provides an early warning, stops motors, locks out pulsing, stops air flow by closing both intake and exhaust louvers of unit, and administers suppression agent (adds 10” to height of unit)
• Streamer Kit: Designed for ambient air cleaning
• Motor Upgrade: Additional HP available for intense applications and increased airflow

Features

• VFD: A Variable Frequency Drive for soft start and increased motor life.

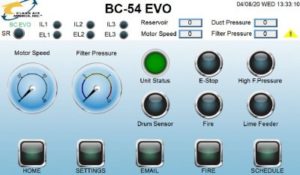

• HMI Interface and Remote Access: Standard on all models (requires ethernet connection).
• Electrical: NEMA 12 Electrical Enclosure with integrated disconnect switch, motor starter, overload, and start/stop button.
• Heavy Duty Construction: Fully welded 10 or 12- gauge steel.
• Drum: (55 gallon) and 36” stand.
• Pulse Valve: 1.5” pulsing valves, pulse controller for automatic or manual operation.
• Compressed Air Requirements: 1” NPT compressed air connection; 70-100 PSI required.
• Silencing: Internal noise abatement to dampen noise (70-80dB at 5’).

Benefits

• Eliminates dust and fume from your environment
• With HMI Interface and remote access, check unit status at any time with peace of mind
• Designed to work 24/7 even in high demand applications
• Clean Air Industries can offer turnkey installation
• Main filter life exceeds the industry standard

Applications

Manual Welding
Robotic Welding
Plasma Cutting
Laser Cutting
• Designed for 24/7 operations.

Technical Specifications

Model Motor CFM Pulse Nozzles Volts/Phase/Hz Weight1 Width Height Depth Noise Filter Type2
Brahm
BC4
5 HP - 10 HP Up to
4000
4 230, 460V/3/60Hz Up to
2800 lbs
84" 101" 43.5" 76 dBA @ 5' Fire Retardant 80/20 Cellulose/Polyester
MERV 11 (4x)
Brahm
BC8
7.5 HP - 25 HP Up to
5400
4 230, 460V/3/60Hz Up to
2800 lbs
84" 127" 43.5" 78 dBA @ 5' Fire Retardant 80/20 Cellulose/Polyester
MERV 11 (8x)
Brahm BC12 10 HP - 30 HP Up to 10000 6 230, 460V/3/60Hz Up to
3500 lbs
103" 127" 43.5" 80 dBA @ 5' Fire Retardant 80/20 Cellulose/Polyester
MERV 11 (12x)
Brahm BC18 20 HP - 30 HP Up to 10000 9 230, 460V/3/60Hz Up to
4100 lbs
103" 127" 60" 80 dBA @ 5' Fire Retardant 80/20 Cellulose/Polyester
MERV 11 (18x)

1 - Weight range depends on motor, blower,accessories, etc.
2- 100% Cellulose (MERV 11), Nanofiber (MERV 15), PTFE (MERV 16,) and HEPA (H13) available

Custom Designs & Modular Configurations

Clean Air Industries can modify units to fit your specific application.  Everything from ceiling clearance, to floor space can effect what you need.  As we cut and weld everything in-house, we are able to accommodate your needs as required.
